Sprinkler Fire Protection System is one of the most reliable and efficient Fire FIghting System having very less maintenance cost. The advantage of this system is that itself detects and extinguishes fire.

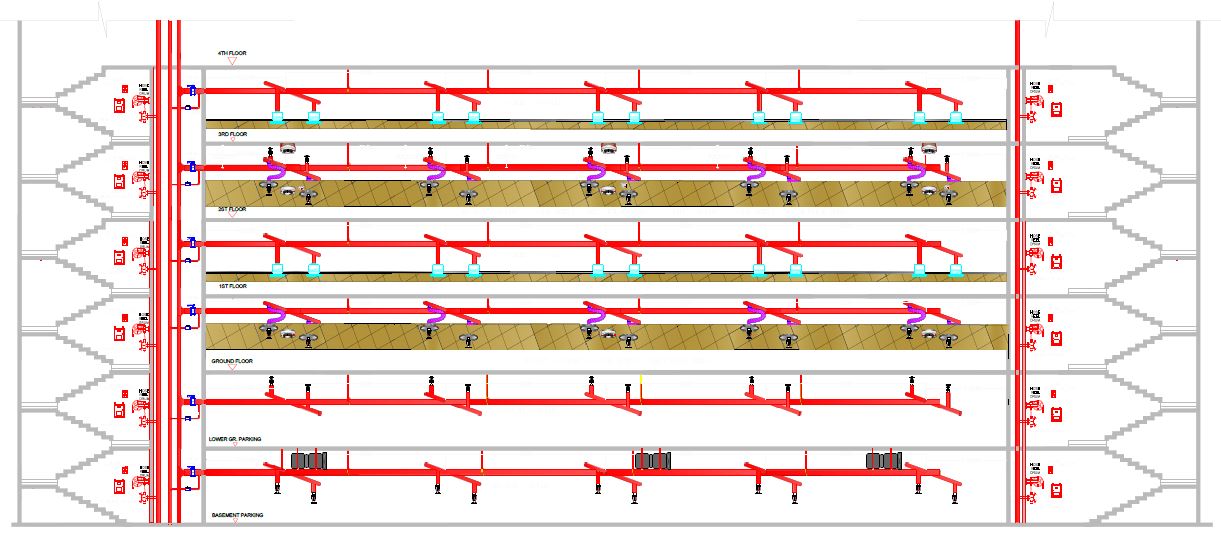

A fire sprinkler system is an active fire protection method, consisting of a water supply system, providing adequate pressure and flow rate to a water distribution piping system, onto which fire sprinklers are connected.
A sprinkler discharges water when the effects of a fire have been detected, such as when a predetermined temperature has been exceeded.

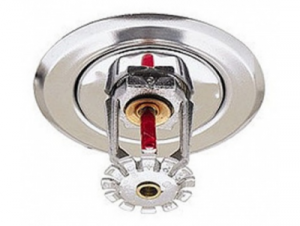

The most common type of fire sprinkler head is the pendent. Once water is expelled onto a pendent fire sprinkler’s deflector, it sprays in a circular pattern providing the most coverage of any fire sprinkler

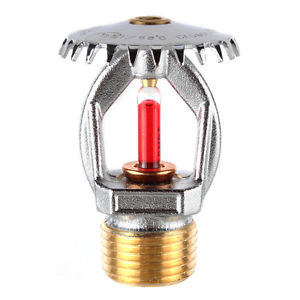

Upright sprinklers are used mostly in places where obstructions may block water spray during a fire, and their height allows them to aim water around possible obstacles.

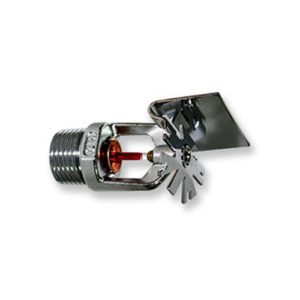

Sidewall fire sprinklers, as the name suggests, protrude from the side of a wall, as opposed to hanging down from the ceiling. Sidewall fire sprinklers are ideal to use in situations where ceiling access is limited or where freezing is a potential concern.

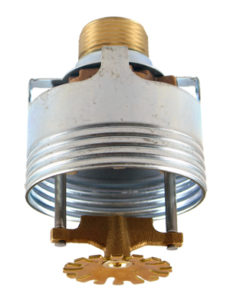

Concealed sprinkler systems are popular because no disturbance will be made to the appearance of the ceiling. It offers an alternate option in low profile and an aesthetically pleasing appearance.

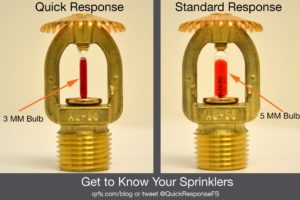

Quick Response Sprinklers are primarily used for light hazard applications, it discharges water higher up on the ceiling. Quick Response fire sprinkler heads are standard for highly populated buildings such as health care facilities, assisted living facilities, shopping malls.

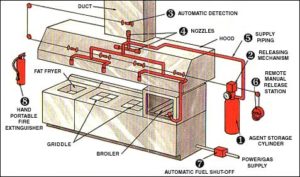

A fire needs three things to thrive: oxygen, heat, and fuel. Once the kitchen hood sprinkler system detects a fire, the nozzles above the appliance will discharge wet chemicals. These wet chemicals are engineered to quickly put out fires by covering the flames and starving them of oxygen.
Rack sprinklers are installed along a network of piping secured within the rack storage structure for adequate protection throughout the entire storage area.

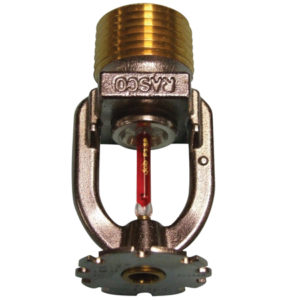

As the name suggests extended sprinkler is provided in areas which need larger coverage, such sprinklers cover approximately 2 times the area of a standard sprinkler.
